M45 Industrial Connector Series

M45 Male Pin Male Connector M16 Female Pin Male Connector

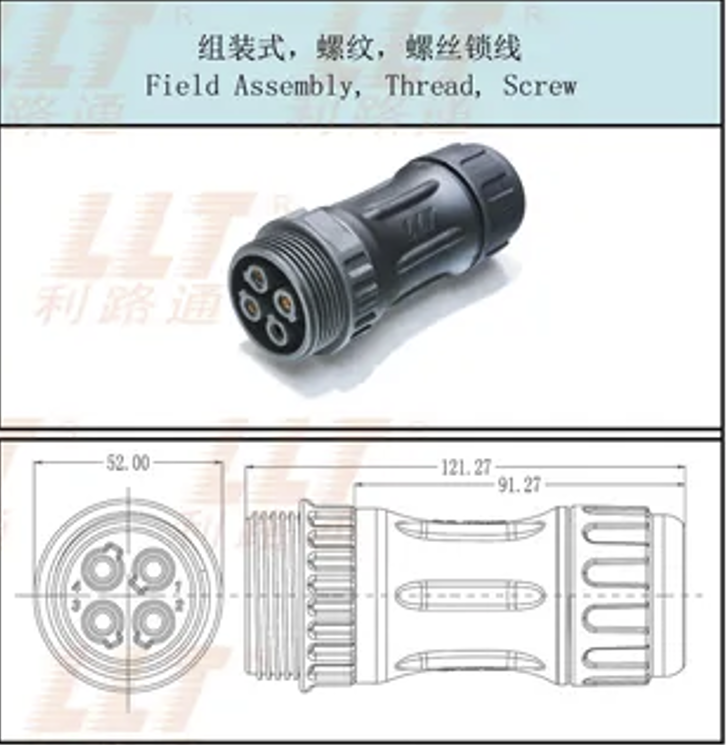

M45 Male Pin Male Connector

Part Number
LLT-M29-70003M1052
Rated Voltage
250V
Rated Current
70A
Wire Gauge
⌀ ≤10 mm²
Cable Outer Diameter
⌀ Max.25mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67/IP68
Pin Layout
3pole
Pin Layout
Pin Layout Diagram
↔
M45 Female Pin Female Connector M16 Flanged Female Pin

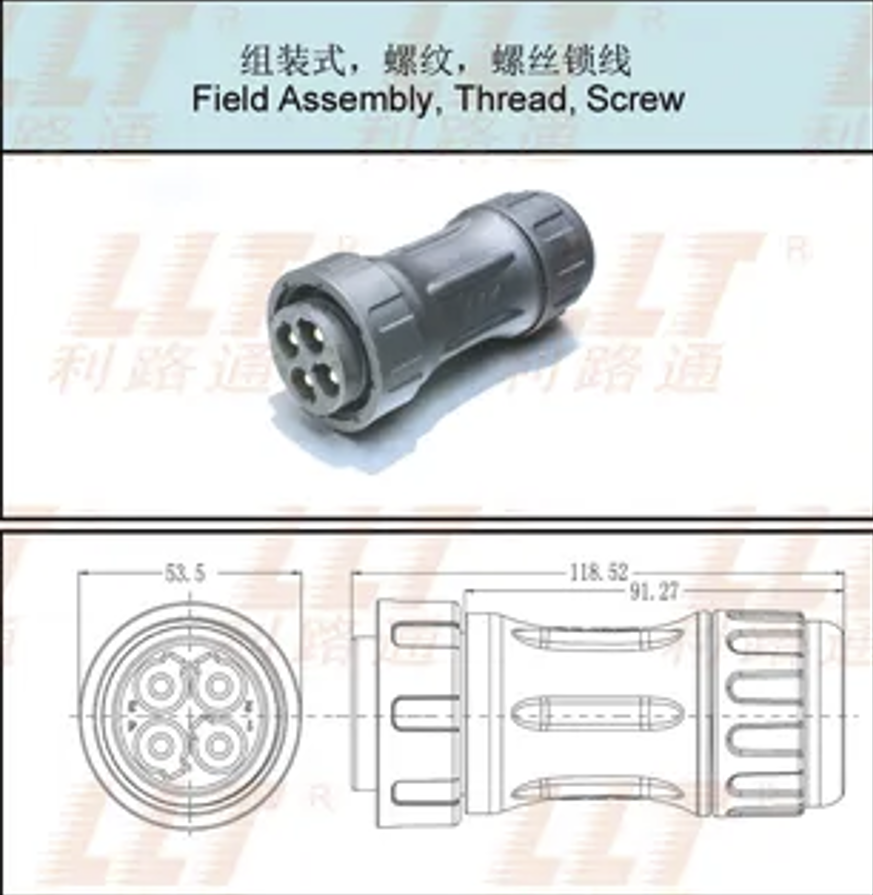

M45 Female Pin Female Connector

Part Number
LLT-M29-70003F1052
Rated Voltage
250V
Rated Current
70A
Wire Gauge
⌀ ≤10 mm²
Cable Outer Diameter
⌀ Max.25mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67/IP68
Pin Layout
3pole
Pin Layout
Pin Layout Diagram
