Energy Storage Self-Locking 6.0 Plug/Socket Series

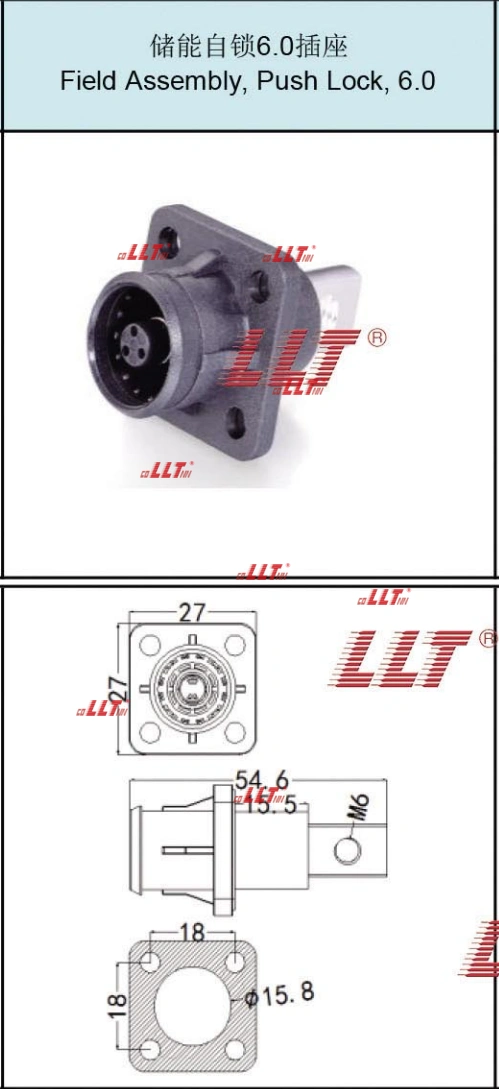

Energy Storage Self-Locking 6.0 Socket T-Type Standard 1 High-Efficiency Photovoltaic Interconnection Connector

High-Efficiency Photovoltaic Interconnection Connector - Superior Design for Enhanced System Reliability

Part Number
LLT-LPEVH6-120X/Y-M6
Rated Voltage
1500V
Rated Current
100A/120A/150A
Wire Gauge
⌀ 16 mm²/25 mm²/35 mm²
Cable Outer Diameter
⌀ 8-12mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Hardware Layout
Hardware Layout Diagram
↔

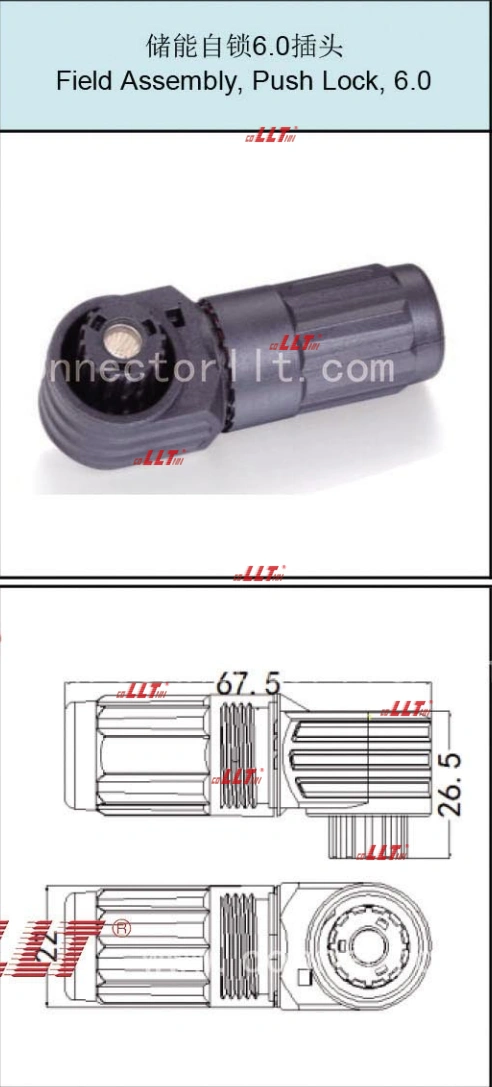

Energy Storage Self-Locking 6.0 Plug T-Type Standard 2 High-Efficiency Photovoltaic Connector

High-Efficiency Energy-Saving T-Type Photovoltaic Connector - Designed and Optimized for Industrial Photovoltaic Systems

Part Number
Rated Voltage
Rated Current
Wire Gauge
⌀
Cable Outer Diameter
⌀
Mating Cycles
Operating Temperature
Waterproof Rating
Hardware Layout
Hardware Layout Diagram

Energy Storage Self-Locking 8.0 Plug/Socket Series

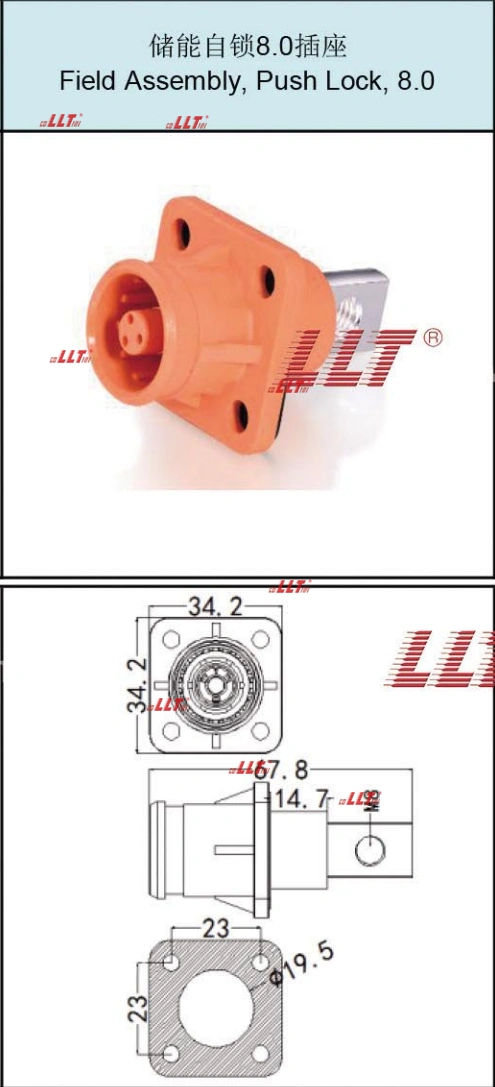

Energy Storage Self-Locking 8.0 Socket High-Efficiency Photovoltaic Small-Scale Interconnection Connector

High-Efficiency Photovoltaic Small-Scale Interconnection Connector - Optimized for Distributed Energy Systems

Part Number
LLT-LPEVH8-200X-M8
Rated Voltage
≤2.5mm²
Rated Current
≤2.5mm²
Wire Compatibility
⌀ ≤12.0mm
Cable Outer Diameter
⌀ 12-18mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Hardware Layout
Hardware Layout Diagram
↔

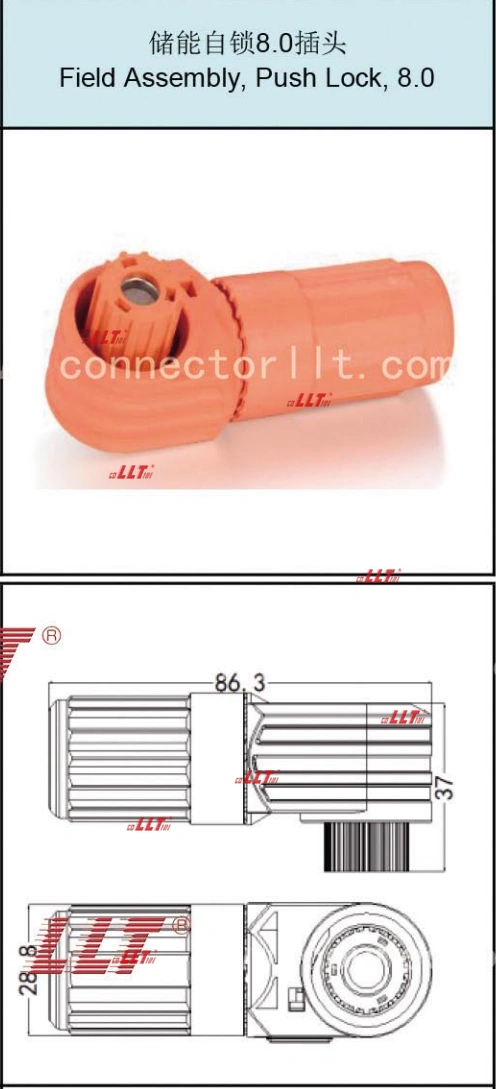

Energy Storage Self-Locking 8.0 Plug High-Efficiency Photovoltaic Medium Connector - Optimized for Energy Conversion and System Stability

High-Efficiency Photovoltaic Medium Connector - Superior Design for Enhanced Interconnection System Efficiency

Part Number
LLT-LPEVH8-200X-90-35/50/75
Rated Voltage
≤4.0mm²
Rated Current
≤2.5mm²
Wire Compatibility
⌀ ≤15.0mm
Cable Outer Diameter
⌀ 12-18mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Hardware Layout
Hardware Layout Diagram
