T-Type M Series

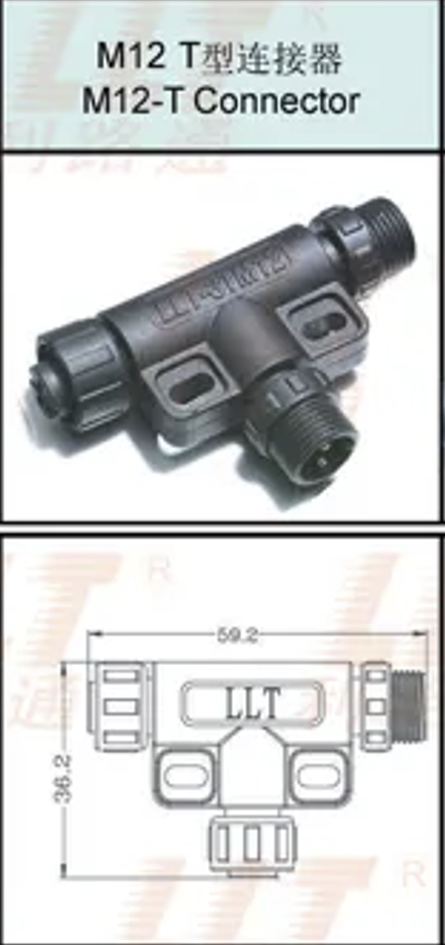

T-Type - M12 T-Type Standard 1 High-Efficiency Photovoltaic Branch Connector

High-Efficiency Photovoltaic Branch Connector - Excellent Design Enhances System Reliability

Part Number
LLT-M12-10002F5221
Wire Compatibility
≤1.0mm²
Wire Outer Diameter
≤7.8mm²
Mating Cycles
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65
↔

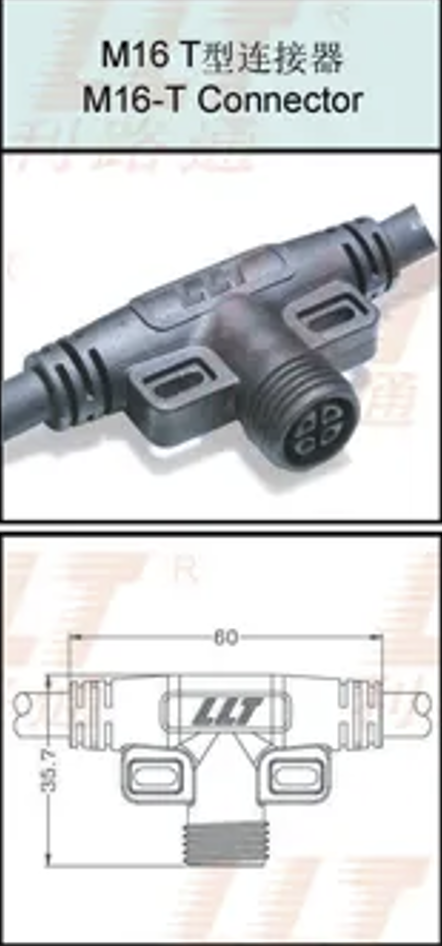

T-Type - M16 T-Type Standard 2 High-Efficiency Photovoltaic Connector

High-Efficiency Energy-Saving T-Type Photovoltaic Connector - Designed and Optimized for Industrial Photovoltaic Systems

Part Number
LLT-M16-10002F5224
Wire Compatibility
≤1.5mm²
Wire Outer Diameter
≤9.0mm²
Mating Cycles
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65

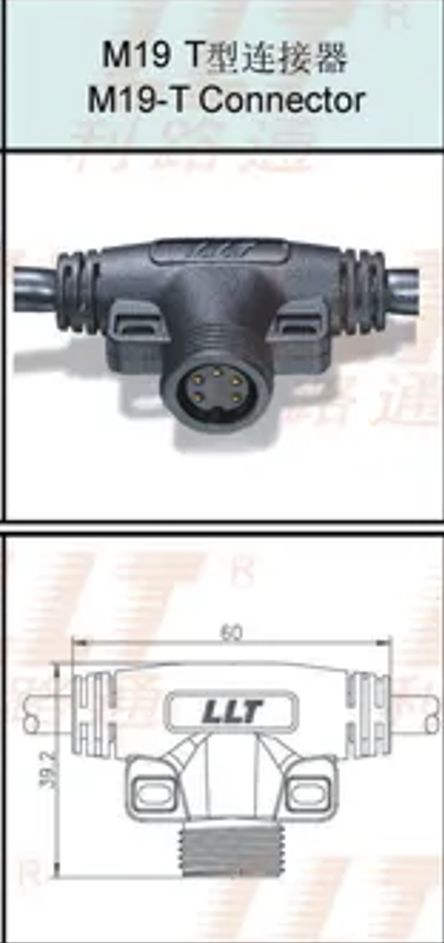

T-Type - M19 T-Type Medium High-Efficiency Photovoltaic Connector - Energy-Saving Branch Interconnection Solution

High-Efficiency Photovoltaic Branch Interconnection Connector - Optimizing Energy Efficiency and System Stability

Part Number
LLT-M19-20002F5224
Wire Compatibility
≤2.5mm²
Wire Outer Diameter
≤10.0mm²
Mating Cycles
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65
↔

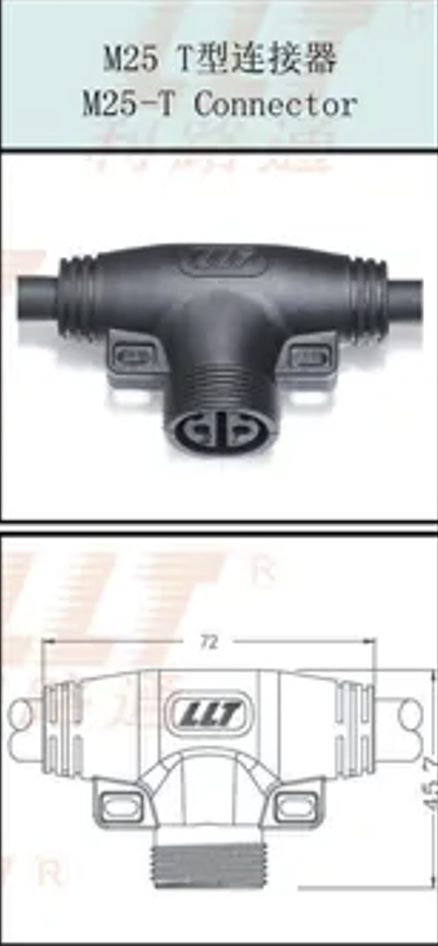

T-Type - M25 T-Type Large Injection Connector High-Efficiency Photovoltaic Branch Interconnection

High-Efficiency Energy-Saving T-Type Large Photovoltaic Connector - Industrial-Grade Injection Locking Technology Optimizing Branch Interconnection

Part Number
LLT-M25-35002F5224
Wire Compatibility
≤4.0mm²
Wire Outer Diameter
≤12.0mm²
Mating Cycles
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65

Y-Type Gun Series

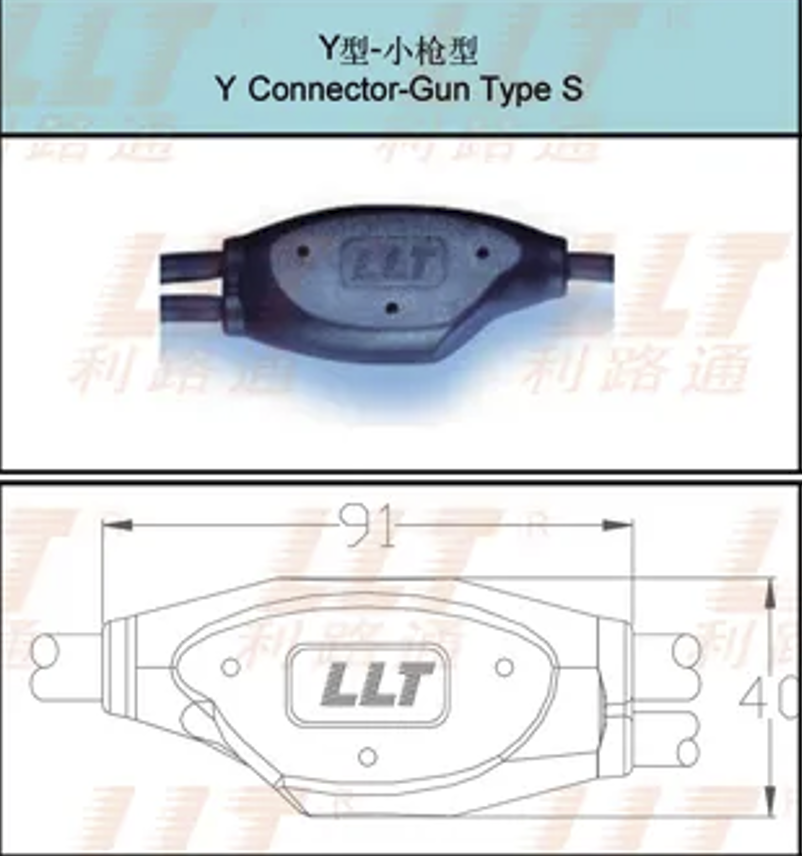

Y-Type - Small Gun High-Efficiency Small Photovoltaic Branch Interconnection Connector

High-Efficiency Small Photovoltaic Branch Interconnection Connector - Optimized Design for Distributed Energy Systems

Part Number
LLT-YS02-XX
Main Line Compatibility
≤2.5mm²
Branch Line Compatibility
≤1.5mm²
Main Line Outer Diameter
⌀ ≤11.0mm
Branch Line Outer Diameter
⌀ ≤9.0mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65
↔

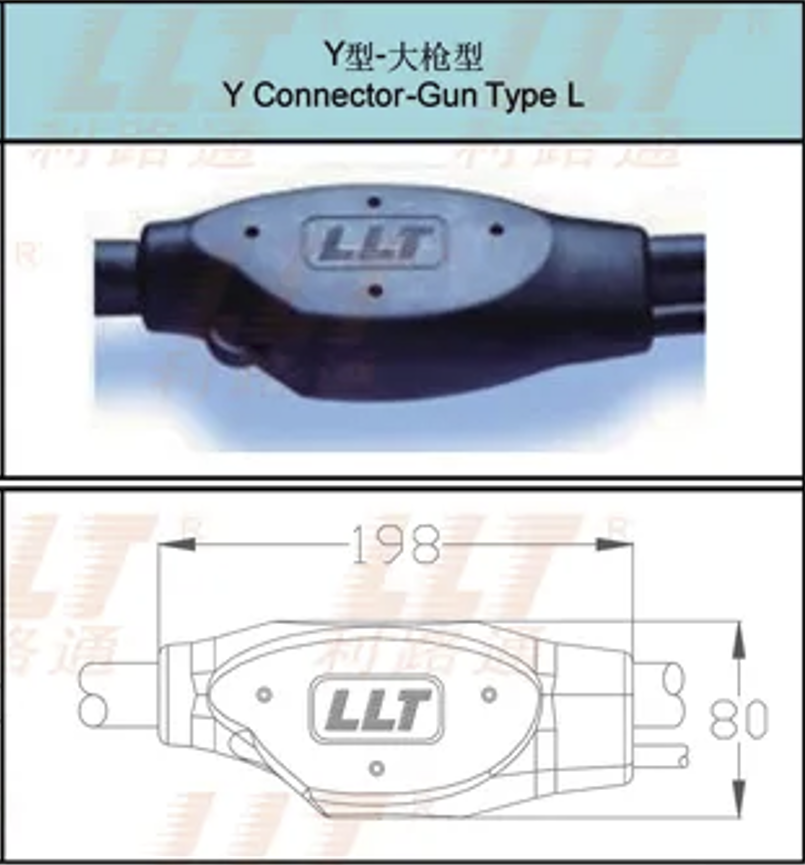

Y-Type - Large Gun High-Efficiency Medium Photovoltaic Connector - Optimizing Energy Conversion and System Stability

High-Efficiency Medium Photovoltaic Connector - Excellent Design to Enhance Branch Interconnection System Efficiency

Part Number
LLT-YM02-XX
Main Line Compatibility
≤6.0mm²
Branch Line Compatibility
≤4.0mm²
Main Line Outer Diameter
⌀ ≤19.0mm
Branch Line Outer Diameter
⌀ ≤16.0mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP65
